ZDN direct-coupled high frequ...

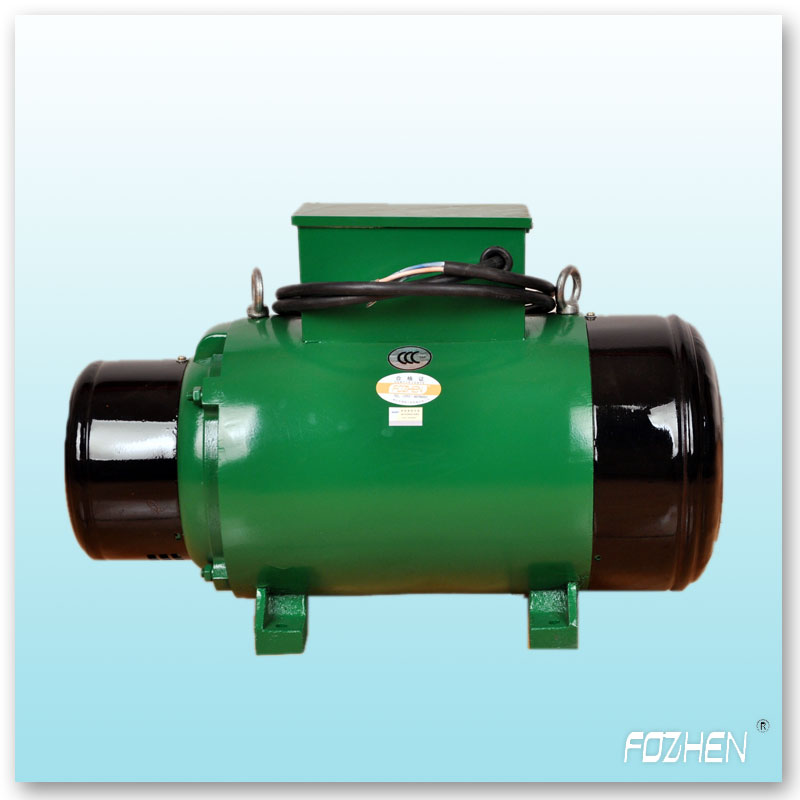

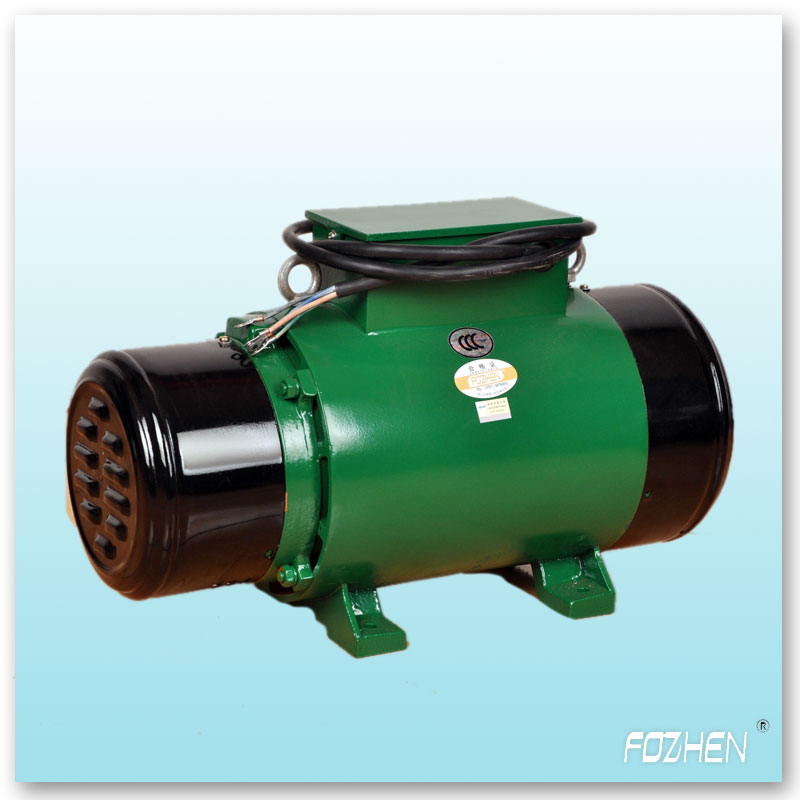

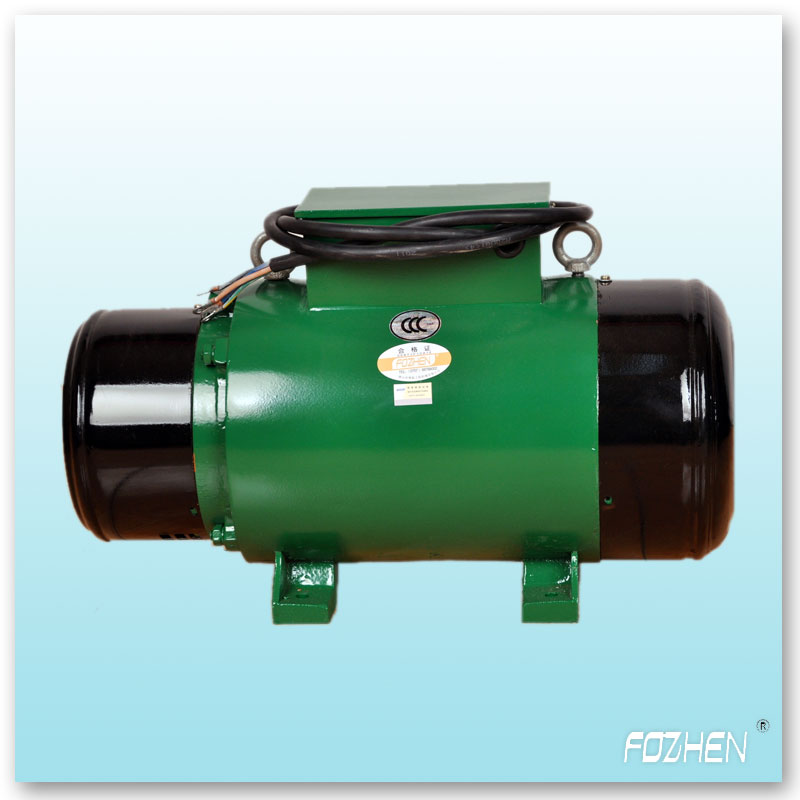

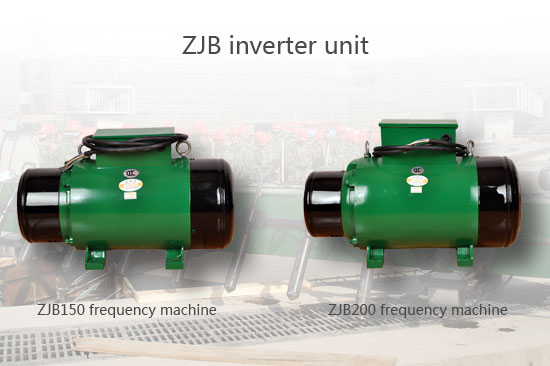

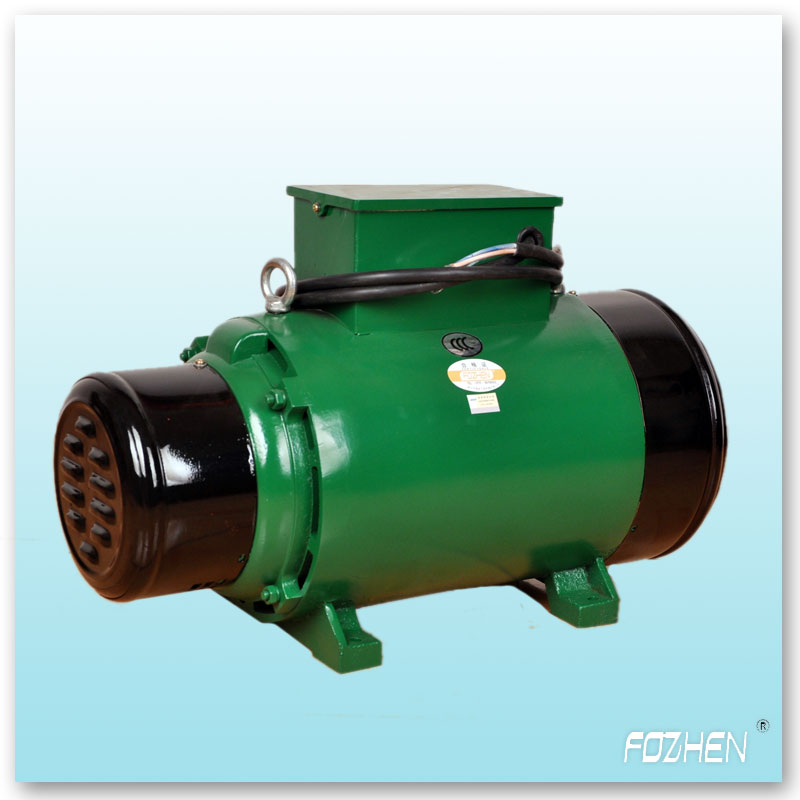

ZJB200 / 150 / 150B inverter unit
Name | Inverter unit | ||
Model | ZJB200 | ZJB150 | ZJB125 |
Generating capacity(KVA) | 4.5 | 8.5 | 12 |
Motor Power (kW) 4.2 | 6 | 7.5 | |
Input (Ph/Hz/V/A) | 3/50/380/8.3 | 3/50/380/11.6 | 3/50/380/14.85 |
Output (Ph/Hz/V/A) | 3/200/48/54 | 3/150/48/102 | 3/125/200/35 |
Dimensions (mm) | 600×250×370 | 670×300×460 | 720×560×550 |
Weight (kg) | 78 | 100 | 190 |
