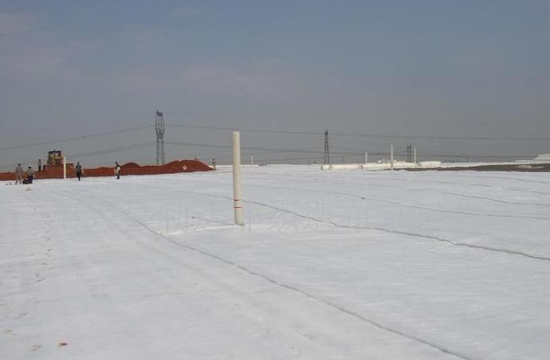

Staple acupuncture geotextile construction site map

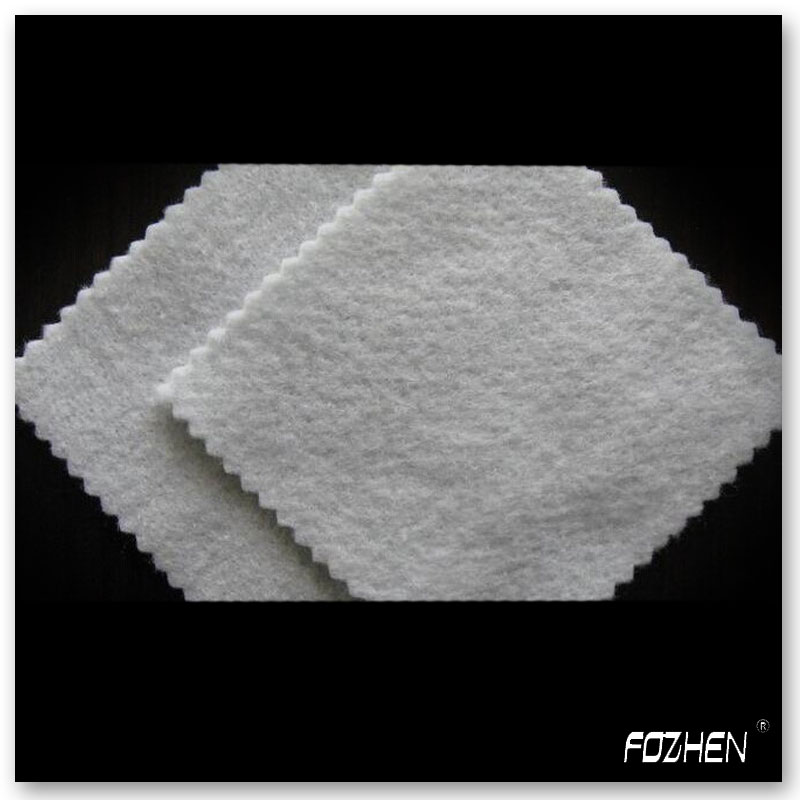

Short silk geotextile has excellent water permeability, filtration and durability, can be widely used in highways, railways, tunnels, dams and other projects; since isolation, filtration, drainage, reinforcement, protection and enhancement; improve project quality, reduce cost, shorten the construction period.
The main product performance and technical indicators (Standard GB / T17638-2008)
Specifications | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remarks |
Mass per unit area deviation(％) | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
Thickness(mm) ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
Width deviation(％) | 0.5 | |||||||||||
Breaking strength(KN/M) | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
Elongation(％) | 25～100 | |||||||||||
CBR bursting strength(KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |
Equivalent aperture090(O95).mm | 0.07～0.2 | |||||||||||
Vertical permeability coefficient(cm/s) | K×(0.1～0.001) | K＝1.0-9.9 | ||||||||||
Tear strength(KN) | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | Vertical and horizontal |
